Arc Welding Robot Peripheral

WELDING PATH TRACKING SYSTEM

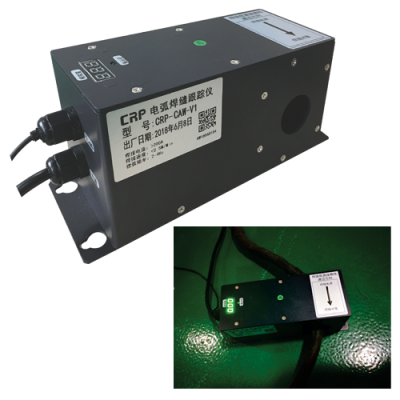

Model : CAW-V1

Arc Current Type Tracking System

Welding Current Condition: >200A
Welding Speed Condition: <8mm/s
Oscillating Frequency: 2-4Hz

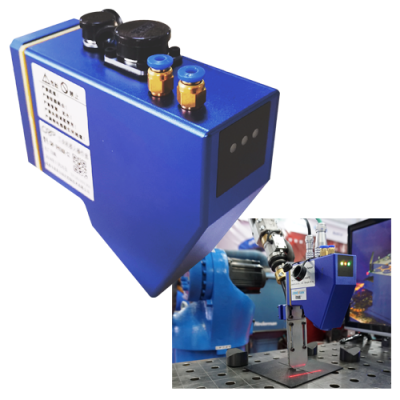

MODEL: CLW-V2

3D Laser Type Tracking System

Tracking Range: 0.5-35mm
Vertical Error: <0.15mm
Horizontal Error: <0.1mm
Communication: RS232, RS485, ModBus, TCP/IP

TURN TABLE & SLIDE

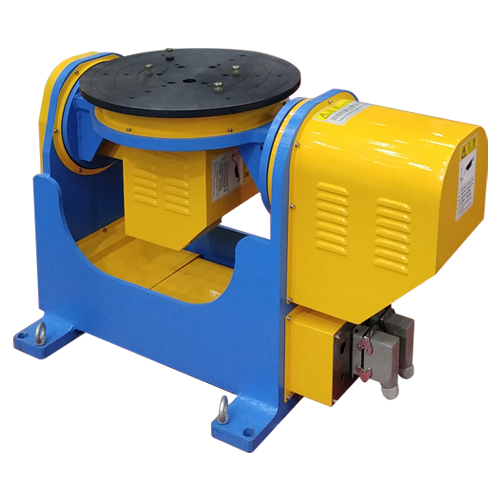

Model : WPB-201-500

Center Mounted Tilt-Rotate Positioner

(for WELDEX Robot Only)

Tilt-Rotate Positioner 200kg

Table Dimension: 500mm
7th Axis Turning Range: ±90°
8th Axis Turning Range: ±360°
Repeatability: ±0.10mm
RV Reducer Type
7th & 8th Axis Motor and Drive Included
Communication Cable 5m
Welding Ground Terminal Prepared

Model : WPB-501-500

Center Mounted Tilt-Rotate Positioner

(for WELDEX Robot Only)

Tilt-Rotate Positioner 500kg

Table Dimension: 500mm
7th Axis Turning Range: ±90°
8th Axis Turning Range: ±360°
Repeatability: ±0.12mm
RV Reducer Type
7th & 8th Axis Motor and Drive Included
Communication Cable 5m
Welding Ground Terminal Prepared

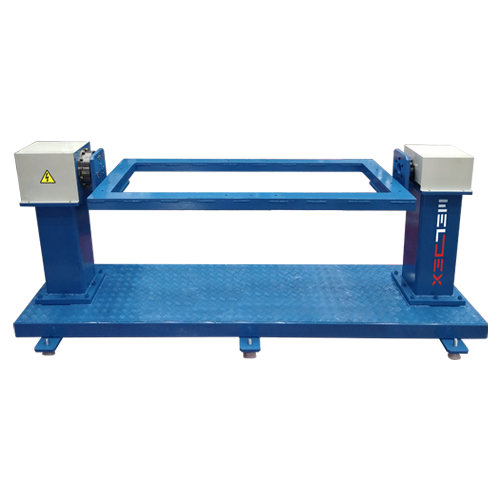

Model : WPA-101-201

(For WELDEX Robot Only)

Tilt Table 100kg

Recommended Working Fixture : 80x180cm
RV Reducer Type
7th Axis Motor and Drive Included
Communication Cable 5m

Model : WPA-301-201

(For WELDEX Robot Only)

Tilt Table 300kg

Recommended Working Fixture : 80x180cm
RV Reducer Type
7th Axis Motor and Drive Included
Communication Cable 5m

Model : WPA-501-201

(For WELDEX Robot Only)

Tilt Table 500kg

Recommended Working Fixture : 80x180cm
RV Reducer Type
7th Axis Motor and Drive Included
Communication Cable 5m

Model : WPA-101-251

(For WELDEX Robot Only)

Tilt Table 100kg

Recommended Working Fixture : 80x220cm
RV Reducer Type
7th Axis Motor and Drive Included
Communication Cable 5m

Model : WPA-301-251

(For WELDEX Robot Only)

Tilt Table 300kg

Recommended Working Fixture : 80x220cm
RV Reducer Type
7th Axis Motor and Drive Included
Communication Cable 5m

Model : WPA-501-251

(For WELDEX Robot Only)

Tilt Table 500kg

Recommended Working Fixture : 80x220cm
RV Reducer Type
7th Axis Motor and Drive Included
Communication Cable 5m

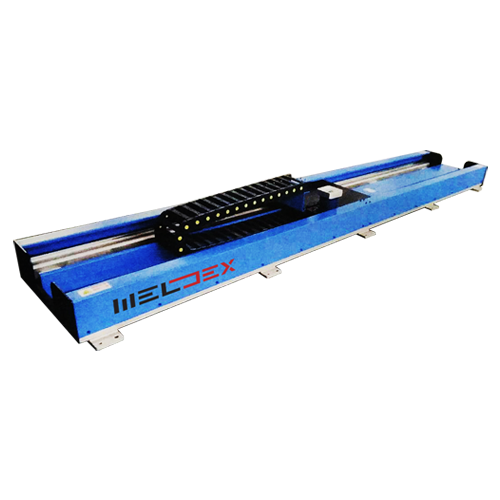

Model : RA-501-402-C

Slide Rail 4m

Moving Distance : 3m
Carrying Load : 500kg
Automatic Oil Dispenser Included
Rack & Pinion Type with Liner Guide
FOR WELDEX ROBOT
7th Axis Motor and Drive Included
Communication Cable 5m

Model : RA-501-402

Slide Rail 4m

Moving Distance : 3m
Carrying Load : 500kg
Automatic Oil Dispenser Included
Rack & Pinion Type with Liner Guide
